| Model
No. | Voltage(V) | Power(W) | A(mm) | B(mm) | C(mm) | D(mm) |
| LV-HS-PD10-24V-14 | DC24V | 2W | 149 | 140 | 10 | 10 |
| LV-HS-PD10-24V-28 | DC24V | 4W | 289 | 280 | 10 | 10 |
| LV-HS-PD10-24V-56 | DC24V | 8W | 569 | 560 | 10 | 10 |
LV-HS-PD10-24V-84 | DC24V | 12W | 849 | 840 | 10 | 10 |
| LV-HS-PD10-24V-112 | DC24V | 16W | 1129 | 1120 | 10 | 10 |
| LED
Chips | SMD 2835 LED | Wire Type | 22 AWG |
| LED Count | 96LED/M | Dimmer | Intergrated Dimmer |
| CCT | 3000K/4000K/6000K | Dimensions(HxWxL) | 10x10xLengh |
| Lumens | 900lm/M | Cover | Transparent/Milky |
| Efficiency | 80lm/W | Housing | Anodized 6063
Aluminum |
| CRI | >80 Ra | Certificate | CE & RoHS |
| Input Voltage | 24V DC | LED Substrate(PCB) | Double Side FR4 |
| Rated Power | 12W/M | Weight | 135g |
| Power Supply | Constant
Voltage-24VDC | Fixture mounting | Stainless steel
mounting clips |
| Maximum
Continous | 6m | IP Rate | IP 21 |

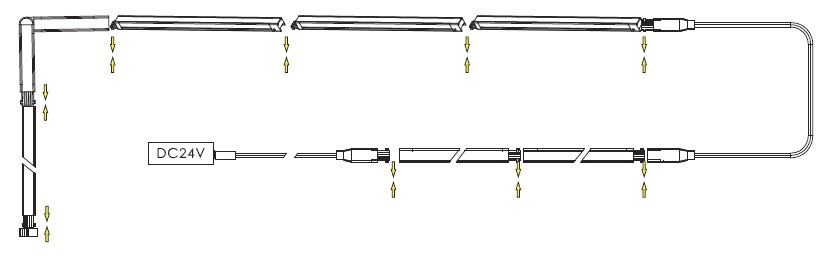

Easy Connection

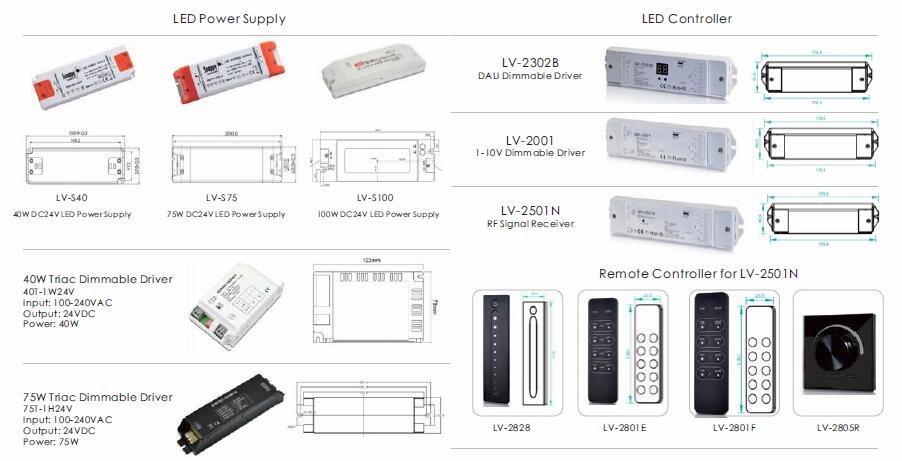

Controller and Power Supply

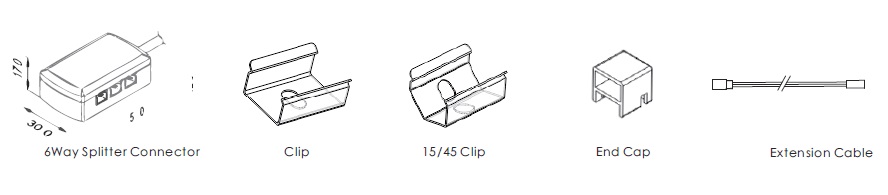

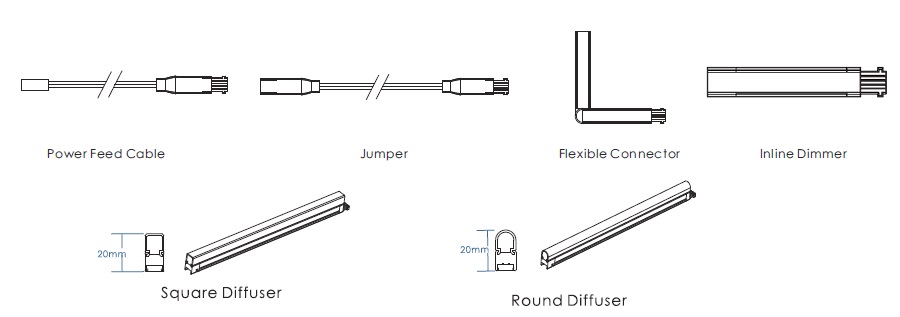

Accessories
| Model
No. | Power Input
(v) | Lamp Power
(W) | A
(mm) | B
(mm) | C
(mm) | D
(mm) |
| LV-HS-PD10-24V-14 | DC24V | 2W | 149 | 140 | 10 | 10 |
| LV-HS-PD10-24V-28 | DC24V | 4W | 289 | 280 | 10 | 10 |
| LV-HS-PD10-24V-56 | DC24V | 8W | 569 | 560 | 10 | 10 |
| LV-HS-PD10-24V-84 | DC24V | 12W | 849 | 840 | 10 | 10 |
| LV-HS-PD10-24V-112 | DC24V | 16W | 1129 | 1120 | 10 | 10 |
