We can do more than the sun
.
Products / 产品展示
产品特点: Item No. LV-PL6060 Input Voltage AC85-265V Power 40W Power Factor 0.95 LED SMD2835 CCT 2700-6500K CRI 80 Total Lumens 3600lm/4100lm/4800lm Lamp Efficiency 90LM/W、100LM/W、120LM/W Beam Angle 120° Shell Material Aluminum+ PMMA Working Temperature -10°C-40°C Working Humidity 10%-90%RH IP Rating IP20 Dimension(mm) 595*595*9.5mm Packing(mm) 625*200*700mm/5pcs Net Weight 3.7KG LED Lifespan 30000H Features: ·Allsides are lined with LED's to grant optimal illumination. ·Highlight output at a reduced energy consumption of up to 50%. ·Over40'000 hours life expectancy. ·Wide angleof deflection with even light distribution. ·Nostart-up delay, no flickering, no humming. ·Highefficiency (95%) constant current driver with built-in overheat protection thatremains stable at a wide range of input voltages. ·IndependentLED circuit design prevents complete blackout in case an LED fails. ·Environmentallyfriendly, mercury and lead free. ·Causesno el...
产品特点: Item No. LV-PL30120 Input Voltage AC85-265V Power 48W Power Factor 0.95 LED SMD2835 CCT 2700-6500K CRI 80 Total Lumens 4200LM Lamp Efficiency 85LM/W Beam Angle 120° Shell Material Aluminum+ PMMA Working Temperature -10°C-40°C Working Humidity 10%-90%RH IP Rating IP20 Dimension(mm) 1195*295*9.5mm Packing(mm) 1300*300*400mm/5pcs Net Weight 4.3KG LED Lifespan 30000H Features:·All sides are lined with LED's to grant optimal illumination.·High light output at a reduced energy consumption of up to 50%.·Over 40'000 hours life expectancy.·Wide angle of deflection with even light distribution.·No start-up delay, no flickering, no humming.·High efficiency (95%) constant current driver with built-in overheat protection that remains stable at a wide range of input voltages.·Independent LED circuit design prevents complete blackout in case an LED fails.·Environmentally friendly, mercury and lead free.·Causes no electromagnetic interference...
产品特点: Model No. LVLDL-HP-04 Input Voltage 120-220V/AC Frequency 50/60Hz Power 11W Power Factor PF0.92 THD THD<20% Certificates CE, ROHS,TUV, ETL Cover Material Acrylic Beam Angle 90° COB Brand Epistar/SAMSUNG Driver Brand DML1210-0280 Luminous Flux 1068LM(3000K) Color Temperature 2900K-3200K, 4000K-4500K, 6000K-6500K Color Render Index Ra82 Housing Material Die casting aluminum Size φ129×25mm, cut hole 108mm Adjustable Yes External Driver Yes Ceiling Thickness 3-20mm Installation Type Ceiling Recessed Type Application Interior(IP44) Ambient Humidity 10%~90%R.H. Ambient Temperature -20℃~+45℃ Storage Tempertature -20℃~50℃ Working Temperature  (Ta=25℃) Lifespan 40000Hrs Warranty 3 years   Driver Brand Available Triac,0/1-10V,DALI dimmable driver for options
产品名称: LVL-DL2C08
产品特点:
产品名称: 1.2m Triproof lamp
产品特点: Item No. LV-SF90L1200-60W Input Voltage AC100-277V50/60Hz Power 60W Power Factor 0.9 LED SMD2835 CCT 2700-3200K 4000-4500K 6000-6500K Total Lumens 5700lm 6000lm 5820lm Lamp Efficiency 90Lm/W±10% CRI 80 Shell Material ALhousing + PC cover IP Rating IP66 Dimension(mm) L1200*W90*H63mm
产品名称: 0.6m Triproof lamp
产品特点: Item No. LV-SF90L600-20W Input Voltage AC100-277V 50/60Hz Power 20W Power Factor 0.9 LED SMD2835 CCT 2700-3200K 4000-4500K 6000-6500K Total Lumens 2850lm 3000lm 2910lm Lamp Efficiency 90Lm/W±10% CRI 80 Shell Material AL housing + PC cover IP Rating IP66 Dimension(mm) L628*W90*H63mm
产品特点: ModelNo.Power Input(v)Lamp Power(W)A(mm)B(mm)C(mm)D(mm)LV-HS-PD10-24V-14DC24V2W1491401010LV-HS-PD10-24V-28DC24V4W2892801010LV-HS-PD10-24V-56DC24V8W5695601010LV-HS-PD10-24V-84DC24V12W8498401010LV-HS-PD10-24V-112DC24V16W112911201010 LEDChipsSMD 2835 LEDWire Type22 AWGLED Count96LED/MDimmerIntergrated DimmerColorTemperatures3000K/4000K/6000KDimensions(HxWxL)10x10xLenghLumens900lm/MCoverTransparent/MilkyEfficiency80lm/WHousingAnodized 6063AluminumCRI80 RaCertificateCE & RoHSInput Voltage24V DCLED Substrate(PCB)Double Side FR4Rated Power12W/MWeight135gPower SupplyConstantVoltage-24VDCFixture mountingStainless steelmounting clipsMaximumContinous6mIP RateIP 21 Easy Connection Controller and Power Supply Accessories ModelNo.Power Input(v)Lamp Power(W)A(mm)B(mm)C(mm)D(mm)LV-HS-PD10-24V-14DC24V2W1491401010LV-HS-PD10-24V-28DC24V4W2892801010LV-HS-PD10-24V-56DC24V8W5695601010LV-HS-PD10-24V-84DC24V12W8498401010LV-HS-PD10-24V-112DC24V16W112911201010
产品特点: Rated powerLV-HS-PD20-24V-30 4Watt LV-HS-PD20-24V-50 7Watt LV-HS-PD20-24V-100 13WattLV-HS-PD20-24V-120 16WattPower Consumption±0.5WInput voltageDC24V or DC12VLED quantity36PCS 60PCS 132PCS 156PCSLED sourceEpistarLamp casingMilky/PCLED Luminous Efficiency80-90lm/WLED Luminous Flux320lm 720lm 960lm 1440lm Luminaire Efficiency85%Illumination Uniformity0.8Correlated Color Temperature2700K-7000KColor Rendering IndexRa≥80Beam Angle120ºDegree of ProtectionIP40  ItemInner boxOuter boxQuantitybox/1box/100SizeL25x W20 x H1470L1530 x W290 x H300N.W0.37kg37kgG.W0.41kg42kg Installation Instructions 1.Open the lamp box,remove the lamp to check is there any collision or other injuries, if any damage,please contact manufacture immediately.   2. The main diagram as follows:   Description:1.Emitting Area 2.Main body 3.Connector 1.Fixed lamp body as diagram:(note:two kinds of bracket Optional,the user can select accoeding to demand) 2.Connectionas diagr...
产品特点: Model No.Power Input (v)Lamp Power (W)A (mm)B (mm)C (mm)D (mm)LV-HS-PD30-24V-20DC24V5W2001913012LV-HS-PD30-24V-30DC24V6W3002913012LV-HS-PD30-24V-50DC24V11W5004913012LV-HS-PD30-24V-100DC24V21.6W10009913012LED ChipsSMD 2835 LEDWire Type22 AWGLED Count180LED/MDimmerIntergrated DimmerColor Temperatures3000K/4000K/6000KDimensions(HxWxL)12x30xLenghLumens1500lm/MCoverMilkyEfficiency80lm/WHousingAnodized 6063 AluminumCRI80 RaCertificateCE & RoHSInput Voltage24V DCLED Substrate(PCB)Double Side FR4Rated Power22W/MWeight300gPower SupplyConstant Voltage-24VDCFixture mountingStainless steel mounting clipsMaximum Continous4mIP RateIP 21 Easy Connection Controller and Power Supply Accessories
产品名称: Linear-LV5050
产品特点: Item LV5050 Dimension (mm) L1210*W50*H50 Power (W) 34.5W Luminous flux (lm) 1320LM / 1550LM / 1950LM CCT (K) 2700-2900K / 3800-4200K /5800-6500K Input Voltage (V) DC24V PF 0.95 Beam angle 120° CRI (Ra) ≥80 Color Silver / White / Black Installation Pendant / Recessed / Surfacemounted Rated Current 1.44A/PCS
About us / 公司简介

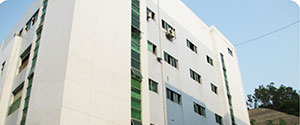

LED Vision Lighting Technology Co., Ltd., is a leading manufacturer of led panel light, led down light, led par lamp products and provide lighting solutions in China. Our company is committed to provide innovative and customized products, services and solutions to create long-term value and potential growth for customers. Our portfolio covers manufacturing of a wide range of lighting products for architecture industry, landscaping, commercial promotion, residential applications as well as customized specialty lighting equipments. LED Vision Lighting Technology Co., Ltd., is a high-tech company which is mainly engaged in scientific research, production, technical support and service of LED semiconductor illumination. Under the ISO9001:2000 Quality Management System, most of our products have CE, RoHS and/ or UL/ETL certificates. Continued innovation is a core strategic initiative at LED Vision Lighting, and we are committed to developing new products by utilizing the latest lighting tec...
News / 新闻动态
What is Lumen(lm)?
What is Lumen(lm)? Q.What is Lumen(lm)? A:Lumen is the international(SL)unit of luminous flux, a measure of overall light emitted by a light source. What is Candela(cd)? Q. What is Candela(cd)? A:Candela is the international(sl) unit of luminuous intensity,a measure of light emitted by a light source in a particular direction. Any given light source will have different luminous intensities in different directions considered.
2015 - 07 - 23
What is Lumen(lm)?
What is Lumen(lm)? Q.What is Lumen(lm)? A:Lumen is the international(SL)unit of luminous flux, a measure of overall light emitted by a light source. What is Candela(cd)? Q. What is Candela(cd)? A:Candela is the international(sl) unit of luminuous intensity,a measure of light emitted by a light source in a particular direction. Any given light source will have different luminous intensities in different directions considered.
2015 - 07 - 23
What is Beam Angle?
What is Beam Angle? Q.What is Beam Angle? A:Beam angle is the angle between two directions for which the luminous intensity is 50% of the maximum intensity as measured in a plan through the nominal beam centerline. Beam angle of a bulb gives an idea of how the light beam spreads away from the beam center.
2015 - 07 - 23
What is LUX(lx)?
Q. What is LUX(lx)?A:Lux is the international(SL)unit of illuminance, a measure of light arriving at a surface, 1 lumen per square foot equals 1 foot candle, while 1 lumen per square meter equals 1 lux .   [lux = lumen/m2]
2015 - 07 - 23
Is the LED bulb good for the environment?
Is the LED bulb good for the environment?A:The materials used are as much as possible environmental friendly materials. If the bulb unexpectedly breaks, you can just put it with your regular household waste. This in contrast to the CFL bulbs: they contain mercury and cause harm to the environment.I Received My Item But It Got Broken During DeliveryQ:I Received My Item But It Got Broken During DeliveryA:Rarely, rough handling by the courier can lead to physical damage to your goods, e.g. broken lens.If this has happened, please follow these steps:If possible, raise a complaint directly with the delivery representative of the courier company before you sign for the goods. They will advise you on the complaint procedure. If you already signed for the packet, take photos showing the damage and contact the local office of the courier/delivery company to complain. They will have a complaing procedure which will enable you to get compensation.Next, contact LED Vision Lighting with your order ...
2015 - 07 - 23
What is Color Temperature / Correlated Color Temperature(CCT)?
What is Color Temperature / Correlated Color Temperature(CCT)?Q.What is Color Temperature / Correlated Color Temperature(CCT)?A:A measurement of the color of light radiated by an object while it is being heated. This measurement is expressed in terms of absolute scale, or degrees Kelvin. Lower Kelvin temperatures such as 2200° K are red; higher temperatures such as 9500° K are blue. Neutral temperature is white, at 6504° K.
2015 - 07 - 23
