| Voltage | DC 12V |
| Wattage | LP-1R=3W
LP-3R=9W
LP-5R=15W |
| LED type | 3W COB LEDs |
| CCT | 3000K 4000K 5000K |
| CRI | >80Ra |
| Mounting | Recess or surface mount |
| Dimensions | H =12.5mm(suface mounted)
H =10mm(recessed mounted)
Diameter =62mm |
| Dimmers | Dimmable with inline dimmer attached to plug-in drivers (LVP-3P-9W and LVP-6P-15W) |
| Finish options | Anodized |
| Rated life | 30,000 hrs |
| Certificates | ETL |
| Warranty | 3 years |

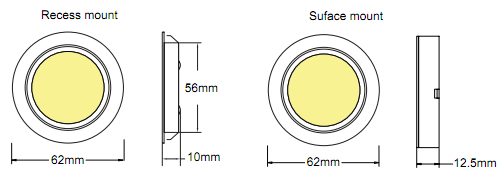

Dimension
![COB LED Puck Light]( "COB LED Puck Light")
Accessories
![COB LED Puck Light]( "COB LED Puck Light")

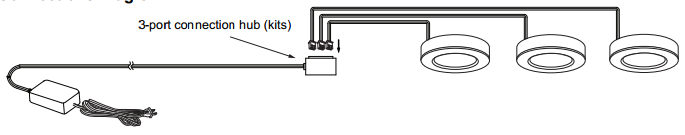

Connections Diagram
![COB LED Puck Light]( "COB LED Puck Light")

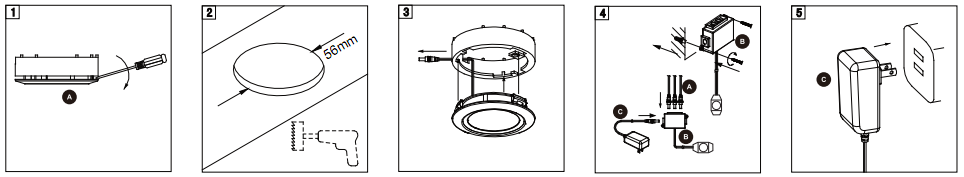

Installation Instructions
Suface Mounting
![COB LED Puck Light]( "COB LED Puck Light")
Recessed Mounting
![COB LED Puck Light]( "COB LED Puck Light")
