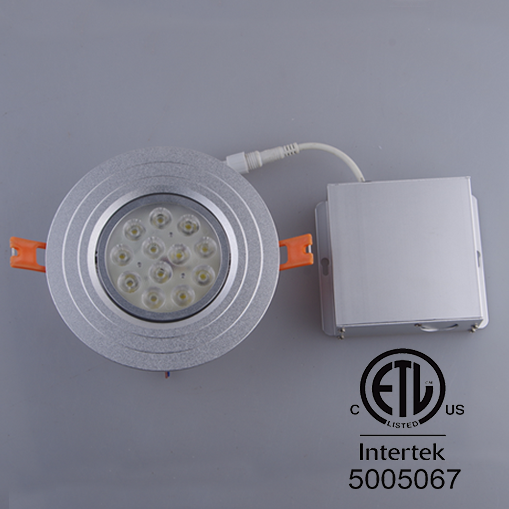

LED Ceiling Light---QL-DL-R4B-XX-YY-R

Date: 2018-01-06

Model No.: QL-DL-R4B-XX-YY-R

Power: 9W

Lumen Flux: 80LM / W

CRI: 80 / 90

Power Factor:>0.95
Trim Color : White (WH), Aluminium (AL), Black (BK)

Beam  Angle  : 30±5  degree

Model  No:QL-DL-R4B-XX-YY-R
Chips:Edison  2835
Available  Color Temperature:2700K/3000K/4000K /5000K/6000K
Luminous  Efficacy:70  / 80LM /W
Beam  Angle :30±5  degree
Power  Factor:>0.95
Default  Driver Input :120V  AC
Air  tight:Yes
Driver  Type:Constant  Current
Operating  Temperature  Farenfeit:- 40°F  to  +104°F
Operating Temperature  Celcius:- 40°C to +40°C

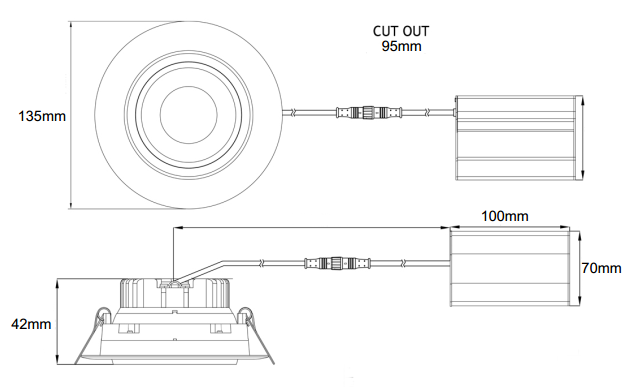

Size:135*42mm ( Cut Out 95mm)
Body  Color:White、  Black、Brushed Nickel
Materials:Aluminum+Guide  plate
Rated  Life(hours)50000hrs
CertificationcETLus,Energy  Star,FCC
Warranty5  Years

LED Ceiling Light---QL-DL-R4A-XX-YY-R


Die cast aluminum body material with good heat dissipation

New construction is optional, no housing required

Trimless design is available

Use FT4 wire with high flame retardant grade

Independent drive junction box, easy to replace

Can be installed in 0.5 "to 1.25" thick ceilings

Safe isolated power supply

Flicker free stable dimming, can be compatible with multi branddimmers

Easy tool-free installation, save time

Finish optional: White/ Black/ Brushed Nickel.
